Front and Side View:
The Front Plate is held in place by 4 - 1/16D Interference Fit Dowel Pins (such as DK41-250).
The cut-away shows a graphic representation of the solenoid coil wound to fit in this unit.
| Page013 |
| ASSEMBLED UNIT |
|

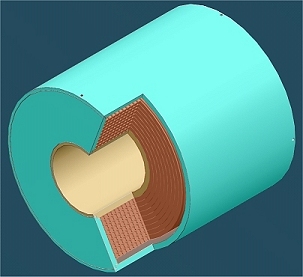

Front and Side View: The Front Plate is held in place by 4 - 1/16D Interference Fit Dowel Pins (such as DK41-250). The cut-away shows a graphic representation of the solenoid coil wound to fit in this unit. |
 |

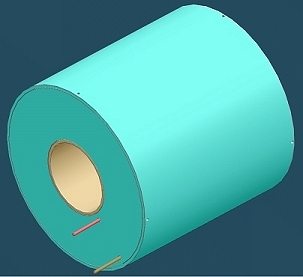

Back and Side View: The Back Plate, like the Front Plate, is held in place 4 - 1/16D Interference Fit Dowel Pins. Cut-off sections of the red and brown lead wires are shown exiting the Back Plate. |
