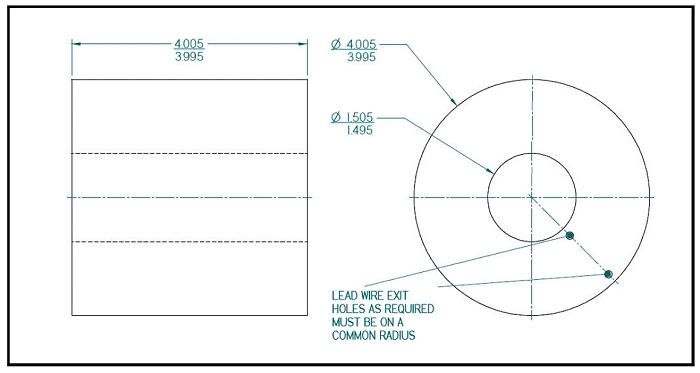

CRITICAL DIMENSIONS OUTLINE DRAWING and NOTES
The dimensional tolerances shown in the outline drawing below are required to meet the customer's specifications. The thickness of the End Plates and the Wall thicknesses of the I.D. Sleeve and Housing Shell shall be 0.125" nominal. The I.D. Sleeve is made of Phenolic (non-magnetic and non-conductive). The Housing Shell and End Plates are Aluminum (non-magnetic and good heat transfer).
|
